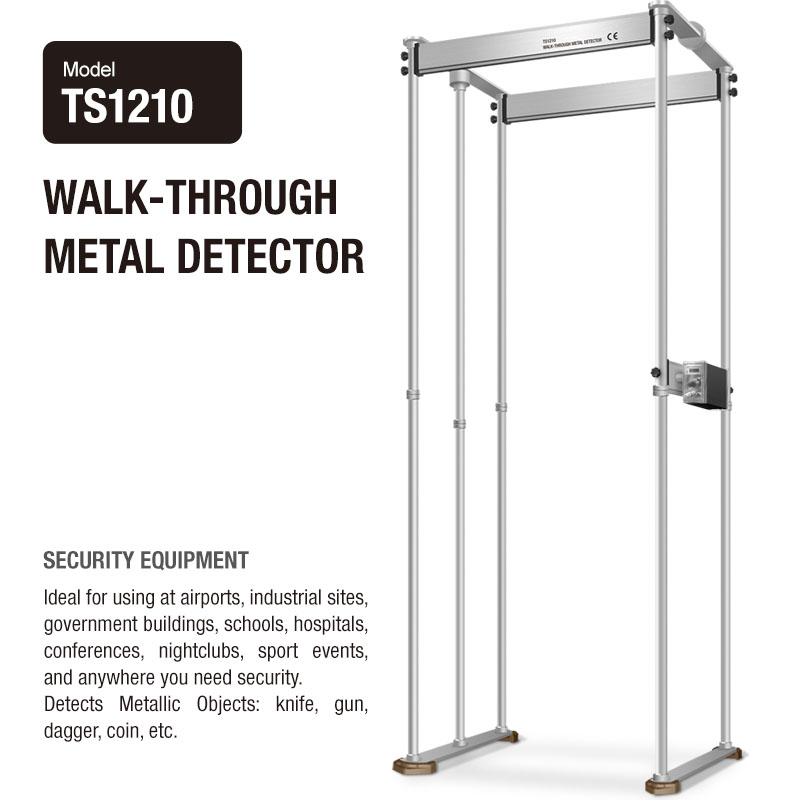

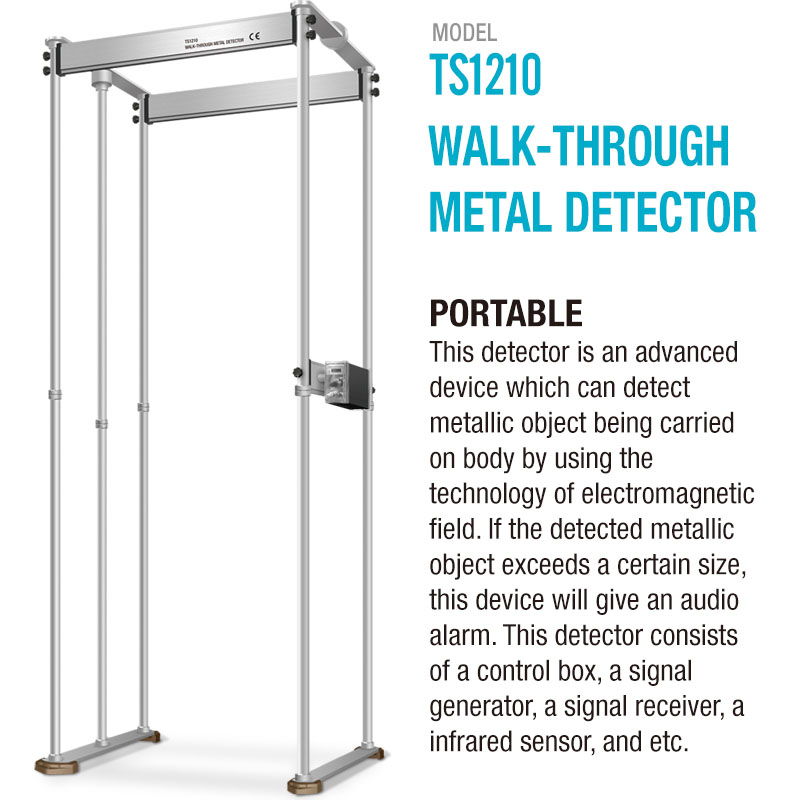

This manual provides detailed instructions for the setup, calibration, and operation of the advanced Walk Through Metal Detector. Proper adherence to these guidelines is essential for optimal performance. The Multi Zones Walk-Through Door technology integrated into this system offers superior detection capabilities, making it an ideal Metro Train Station Checkpoint Detector. Understanding the features of this Walk Through Door Frame Metal Detector Gate will ensure its effective deployment in high-security areas. Its sophisticated design qualifies it as an Enhanced Pinpoint Walk-Through Metal Detector, providing accurate and reliable screening.
【Initial Debugging and Calibration】
To ensure your Walk Through Metal Detector performs at its peak, a mandatory initial debugging procedure must be conducted after first-time assembly. Select a level area for operation, ensuring the vicinity is free from strong electromagnetic interference sources (e.g., welding machines, wire-cut electrical discharge machines, ultrasonic welding machines). Turn the panel "VOLUME" knob clockwise to a position beyond the halfway point. Press and hold the "TEST" button (Figure 10) on the rear of the main unit. While holding the button, turn the power on, then release the "TEST" button. After a short moment, the buzzer will emit three "beep" sounds, indicating the start of the debugging mode for this Enhanced Pinpoint Walk-Through Metal Detector.
Infrared System Check:
The panel's "SENSITIVITY" LED will illuminate, indicating that the infrared emitter is active. This is a standard feature of the Multi Zones Walk-Through Door design. If the LED does not light up, inspect the infrared emitter to ensure it is not installed backwards, and check for any obstructions on the emitter and receiver heads. Once the "SENSITIVITY" LED is steadily lit, walk through the center of the detection arch (or pass an opaque object through it). The LED should momentarily turn off, confirming that the infrared system of this Walk Through Door Frame Metal Detector Gate is functioning correctly, a crucial step for any reliable Metro Train Station Checkpoint Detector.Receiver Balance Adjustment:
Prior to performing the "Receiver Balance" adjustment, the "POWER" LED will be red. This calibration is vital for the precision of our Enhanced Pinpoint Walk-Through Metal Detector. Carefully adjust the position (forwards/backwards, up/down) of either the left or right door frame until the "POWER" LED turns green. This signifies that the left and right door frames are in a symmetrical state, and the Walk Through Metal Detector is in its optimal operational condition, a key requirement for a Multi Zones Walk-Through Door system.Completion:
Briefly press and release the "TEST" button to exit the debugging mode and commence normal operation. Alternatively, you can power the unit off and then on again. Once this initial "Debugging" is successfully completed, it does not need to be repeated unless the Walk Through Door Frame Metal Detector Gate is physically moved to a new location. This ensures long-term stability for your Metro Train Station Checkpoint Detector.
